Gravity Watering
I created this gravity based bucket drip system to water my bonsai trees when I didn’t have access to a dedicated water line. The pressure is very low, but I found that as long as the water reservoir is a couple feet higher than the drippers, the hydraulic head is sufficient.
Pros: saves water, saves time, good for rainwater trap system.
Cons: potential of failure due to clogged lines or dead batteries, have to monitor/refill water in reservoir, cost of components.

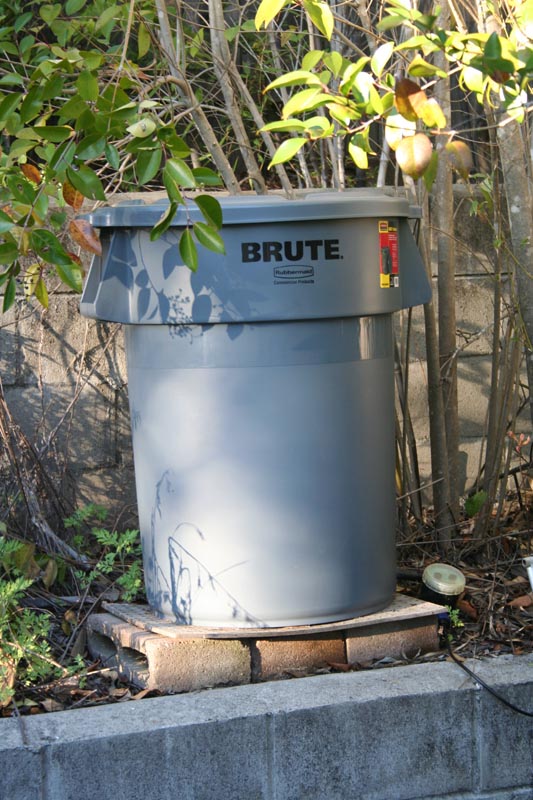

5/10/07 - 30 gallon reservoir.

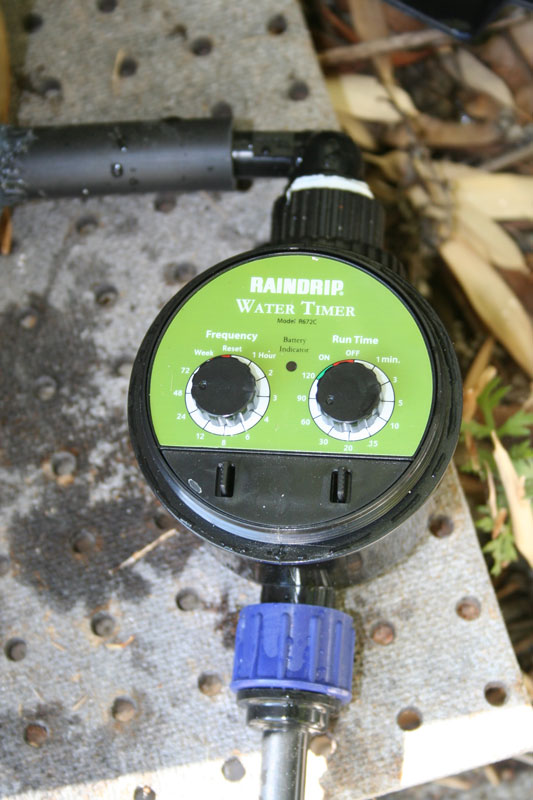

I'm using a battery-powered Rain Drip timer that has very simple twist-knob controls.

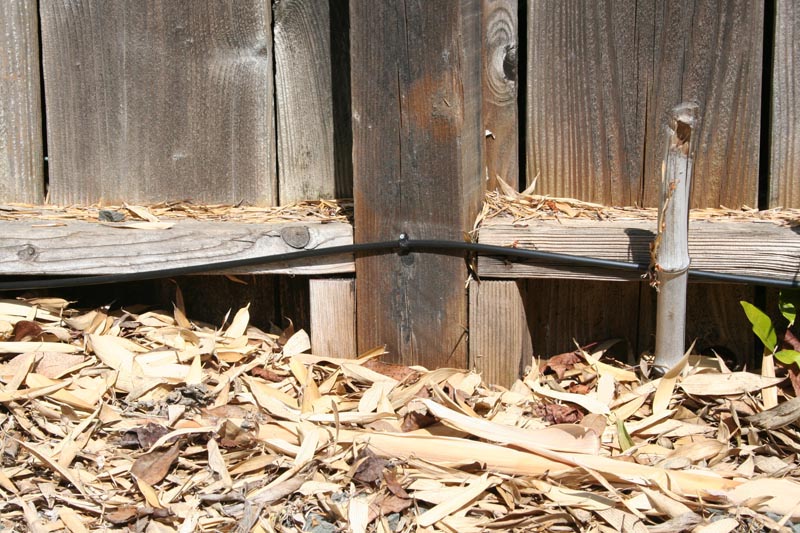

1/4" plastic irrigation hose line.
About 10 Rain Drip in-line 1/2 gph drippers per tree (would be 5gph per tree at normal/garden hose water pressure).

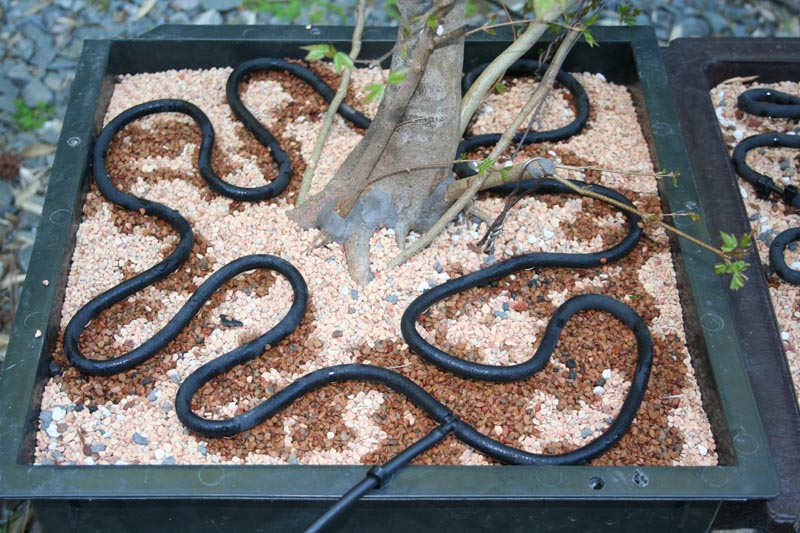

3/2/08 - I switched to 1/4" soaker hose made bendable with a wire in the center for more even distribution. I poked holes in it to increase flow where needed.

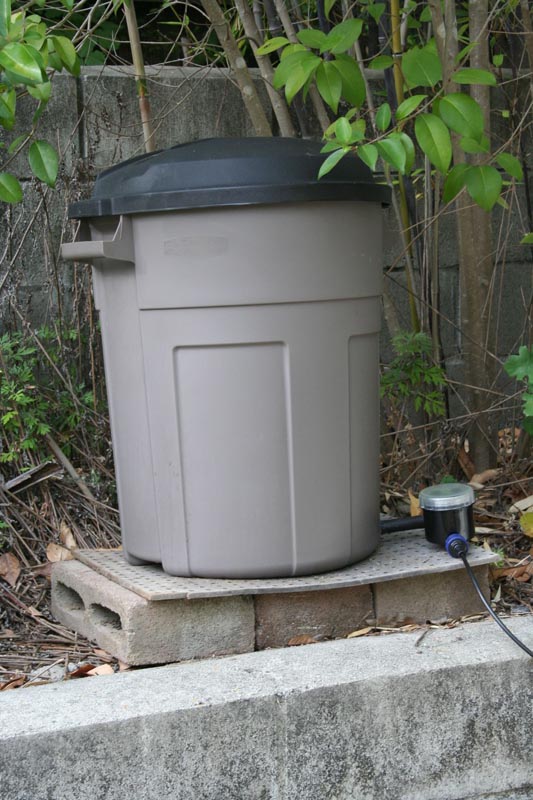

Upgraded to a 45 gallon reservoir.

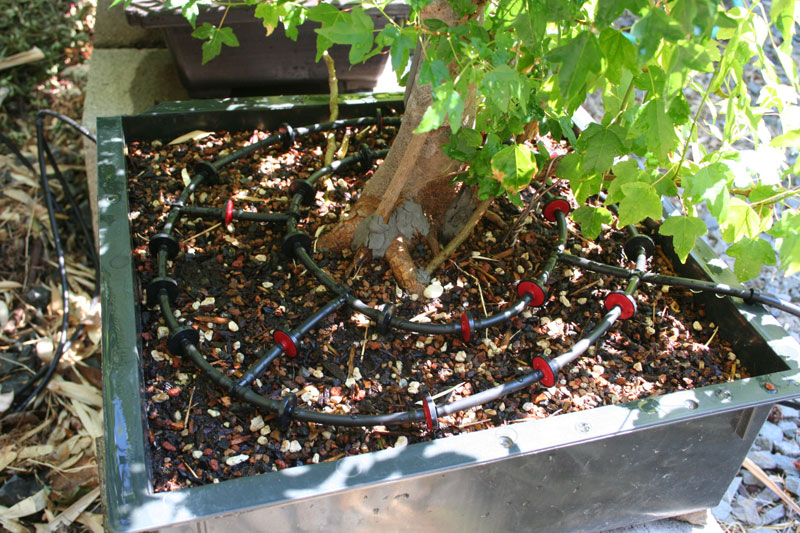

6/15/08 - Went back to the in-line drippers after discovering that the soaker hose tends to clog easily and does not provide a consistent drip. I went w/ two rings to provide even distribution and it seems to be working great so far.
